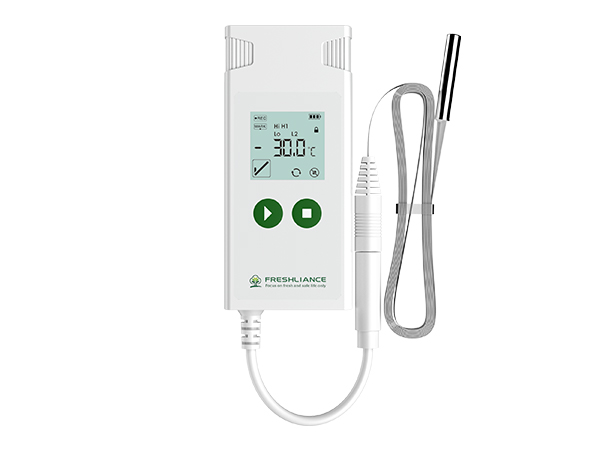

Atlas Log-30 Multi-use Temperature Data Logger
Introduction
Atlas Log-30 Multi-use Temperature Data Logger is a flexible and multi-purpose device suitable for various fields and application scenarios. It provides accurate and reliable temperature monitoring, helping users understand the ambient temperature more clearly. The built-in PDF/CSV file generation function enables this temperature data logger with probe to directly generate irreversible data reports in PDF/CSV format without any software.

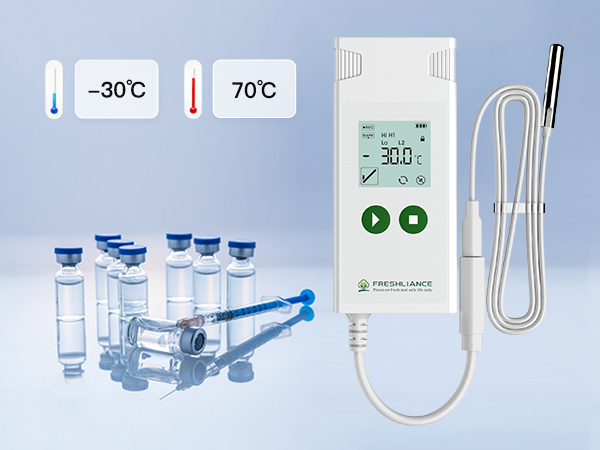

The battery of the Atlas Log-30 Multi-use Temperature Data Logger can be used for up to 180 days. After use, the battery can be replaced and reused. This temperature data logger with an external probe can measure temperatures from -30°C to 70°C with an accuracy of ±0.5°C. It has high accuracy and is very suitable for temperature monitoring of sensitive items.
Features
Alarm function
Temperature thresholds can be set as per the user’s requirements and alarms are triggered when the temperature exceeds or deviates from the set range. Set freely as needed, up to 6 alarm points can be set.
password protection
A password can be set to prevent unauthorized operation of the device.
Intuitive LCD display
The LCD screen displays all parameters, operating status, current temperature, alarm status, battery power, alarm point, maximum, minimum and average temperature values.
Provide ad hoc reports
Temporary mode allows the temperature data logger to continue operating after the user generates and reads temporary reports. You can use the configuration software to view current data information.
Automatically generate PDF/CSV data reports
Automatically generate reports in PDF/CSV/PDF+CSV format with charts and tables, no cables or readers required.
It has two functions: LCD alarm indication and buzzer alarm.
Once the temperature exceeds the preset alarm range, the alarm symbol (x) will be displayed on the LCD screen, and the buzzer will sound a 60 decibel alarm at 3m.
Large memory capacity
Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.
Specification
|
Model |
Atlas Log-30 |
Type |
Reusable |
|
Run Days |
Max. 180 days per battery
|
Memory Capacity |
PDF: Max. 35000 readings; PDF&CSV: Max. 20000 readings |
| Temperature Range |
-30℃~+70℃ |
Temperature Accuracy |
±0.5℃
|
|
Alarm Type |
LCD screen display, buzzer (about 60dB at 3m) |
LCD Screen Display |
Normal, Alarm, Max/Min/Average Temperature Value, Running Status |
|
Resolution |
0.1℃ |
Logging Interval |
1 minute-24 hours |
|
Start Delay |
0 minute-24 hours |
Report Format |
Automatic PDF/CSV report |
|
Connection |
USB, NFC (optional) |
Compatible OS |
Windows, Mac
|
|
Battery |
CR2450 |
Dimension |
96mm*44mm*15mm
|
|
Protection Grade |
IP65 |
Certification |
CE, ROSH, EN12830
|
Applications

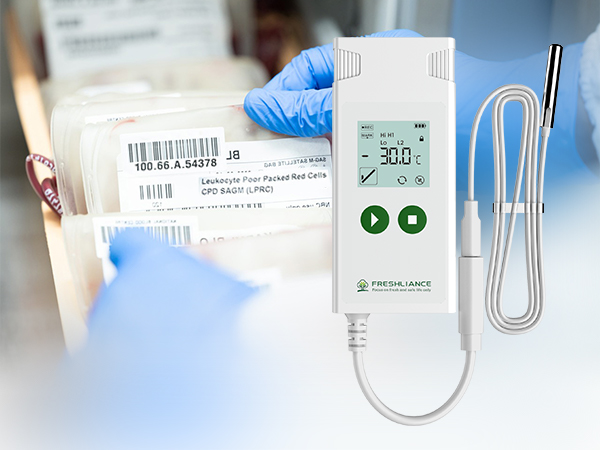

Whether in the food industry, the pharmaceutical field, laboratories, medical facilities or environmental monitoring, the Atlas Log-30 data logger can play an important role. In the food industry, it can be used to monitor the temperature of frozen foods, fresh products or stored goods. In the pharmaceutical field, it can be used to monitor temperature conditions during drug storage and transportation. In laboratories and medical facilities, it can monitor the temperature of instruments, medicines, blood, etc. In environmental monitoring, it can be used to record indoor and outdoor temperature changes.
The Atlas Log temperature data logger with external probe is the ideal temperature monitoring solution for low-volume applications that require frequent temperature sampling intervals. It can be used in a variety of applications such as monitoring dry ice shipments, sea or air shipments, distribution, storage and freezing, pharmaceuticals, frozen food and containers.
