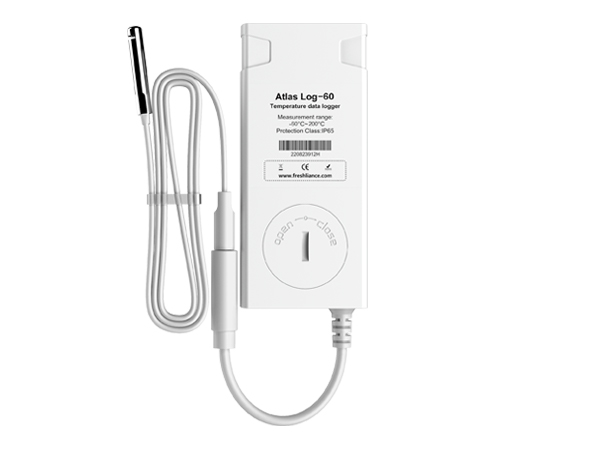

Atlas Log-60 Multi-use Temperature Data Logger

Introduction

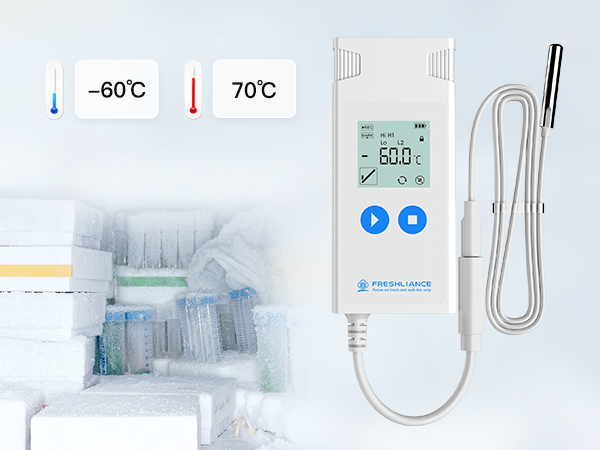

Atlas Log-60 Multi-use Temperature Data Logger has an external probe and is equipped with advanced sensors and calibration technology. The measured temperature data is more accurate. It can measure temperatures from -60 to 70°C with an accuracy of ±0.5°C. Atlas Log-60 is easy to operate and can be freely configured according to the needs of the configuration software provided by Freshiance.

The Atlas Log-60 Multi-use Temperature Data Logger is compact and lightweight, making it easy to place and transport. Its small size makes it suitable for use when space is limited or when discreet monitoring is required. The Atlas Log-60 is ideal for monitoring dry ice shipments, sea or air shipments, distribution, storage and freezing, pharmaceuticals, frozen foods and containers.

Features

Intuitive LCD display
The LCD screen displays all parameters, operating status, current temperature, alarm status, battery power, alarm point, maximum, minimum, and average temperature values.

Replaceable battery
Up to 90 working days. Batteries are replaceable for repeated use.

Alarm point setting and marking function
Set freely as needed, up to 6 alarm points can be set.

password protection
A password can be set to prevent unauthorized operation of the device.

Provide ad hoc reports
Temporary mode allows the temperature data logger to continue operating after the user generates and reads temporary reports. You can use the configuration software to view current data information.

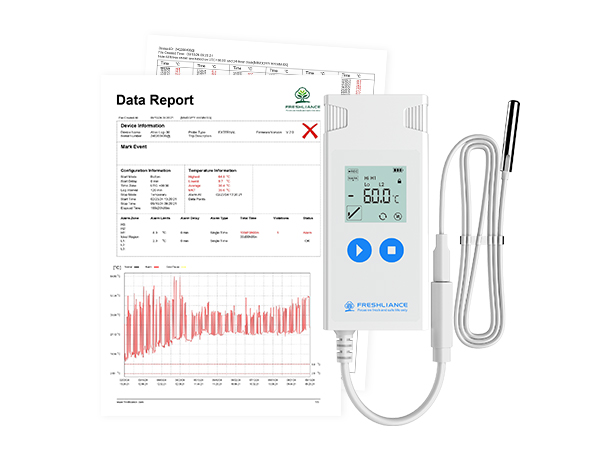

Automatically generate PDF/CSV data reports
Automatically generate reports in PDF/CSV/PDF+CSV format with charts and tables, no cables or readers are required.

It has two functions: LCD alarm indication and buzzer alarm.
Once the temperature exceeds the preset alarm range, the alarm symbol (x) will be displayed on the LCD screen, and the buzzer will sound a 60 decibel alarm at 3m.

Large memory capacity
Max. 35000 readings for only PDF reports; Max. 20000 readings for PDF&CSV reports.

Specification

Model	Atlas Log-60	Type	Reusable
Run Days	Max. 90 days per battery	Memory Capacity	PDF: Max. 35000 readings; PDF&CSV: Max. 20000 readings
Temperature Range	-60℃~+70℃ (external probe with 2 meters cable)	Temperature Accuracy	±0.5℃ at full range (-60℃ to +70℃)
Alarm Type	LCD screen display, buzzer (about 60dB at 3m)	LCD Screen Display	Normal, Alarm, Max/Min/Average Temperature Value, Running Status
Resolution	0.1℃	Logging Interval	1 minute-24 hours
Start Delay	0 minute-24 hours	Report Format	Automatic PDF/CSV report
Connection	USB, NFC (optional)	Compatible OS	Windows, Mac
Battery	CR2450	Dimension	96mm*44mm*15mm
Protection Grade	IP65	Certification	CE, ROSH, EN12830

Applications

Whether in the food industry, pharmaceutical field, laboratories, medical facilities, or environmental monitoring, the Atlas Log-60 temperature data logger plays an important role. In the food industry, it can be used to monitor the temperature and humidity of frozen foods, fresh products, or stored items. In the pharmaceutical field, it can be used to monitor temperature and humidity conditions during drug storage and transportation. In laboratories and medical facilities, the temperature and humidity of instruments, pharmaceuticals, blood, and more can be monitored . In environmental monitoring, it can be used to record indoor and outdoor temperature and humidity changes.

In agriculture and greenhouse growing, temperature and humidity are critical to plant growth and development. The Atlas Log-60 temperature data logger can be used to monitor and manage plant growth environments, helping farmers and horticulturists create optimal temperature and humidity conditions to increase yield and quality.

The Atlas Log-60 temperature data logger with the external probe is an ideal temperature monitoring solution for low-volume applications requiring frequent temperature sampling intervals. It can be used for transportation records of biopharmaceuticals, life sciences, biological samples, blood cold chain, and diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and cell biology reagents in low-temperature environments.
