COEUS-WIFI/4G Real-Time Temperature/Humidity Data Logger

Product Info

  • Temperature Range -20℃ ~+ 60℃; 5% ~ 95%(Built-in Sensor)
  • Accuracy ±0.5℃ F.S.; ±3%RH (25℃, 20%~90%RH) ±5%RH (Other)
  • Run Days 90 days
  • Report Format
  • Memory Capacity 120,000 readings, circular buffer

Introduction

The COEUS series real-time temperature data loggers are ideal for real-time temperature and humidity monitoring in cold rooms, especially refrigerators and freezers. Data is uploaded periodically to Freshliance Cloud using WiFi or 4G network accordingly. Multiple users can view, analyze, and export the data remotely from our could or APP. Easy installation and accessibility are highlights of such standalone real-time data loggers. Besides, they are equipped with a built-in rechargeable lithium battery of 2600mAh, which can be available while charging, so as to ensure the long-term stability of data monitoring; and up to two external probes can be used if needed.

Features

Set and update settings remotely

These real time data loggers can be easily configured and reconfigured with the APP FreshLink, and even the computer platform, including logging interval, upload interval, alarm settings, and alarm notifications, etc.

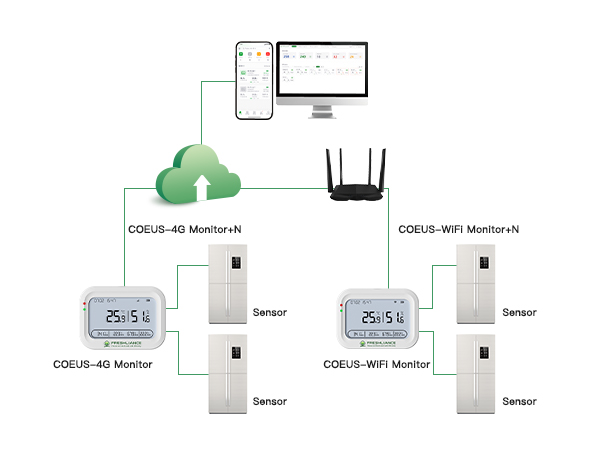

Data transmission to the Cloud via WIFI/4G, and data review by APP and computer platform

These data loggers monitor data as configured and transfer the data to the Freshliance Cloud via WiFi or 4G network accordingly. All data are accessible via the APP and the computer platform, with data graphing, statistics, analysis, and processing.



Persistent caching during offline mode, and data re-upload after network recovery

These data loggers support 24/7 data monitoring and uploading as configured, and allow the data to be cached on the main device during offline mode and re-uploaded after network restoration, so as to ensure the data integrity.



Large LCD screen with backlight for intuitive display

An LCD screen, 85mm*52mm, is designed to intuitively display current temperature and humidity, Max./Min. temperature and humidity, date and time, battery level and communication status, etc.



Rechargeable Battery

These data loggers are designed with a built-in rechargeable lithium battery of 2600mAh, which can be available while charging, so as to ensure the long-term stability of data monitoring.



Instant, Real-time Alarms

Up to 6 alarm points can be set. When the preset thresholds are exceeded, alarm notifications will be sent via SMS, email and APP push remotely, as well as locally via flashing red indicator and the buzzer on the main device.



Multiple installation modes: Stand on end, hanging, etc.

These data loggers can be flexibly installed or placed anywhere according to the actual monitoring environment.



Multiple probe length and insulation options for the external probes

The external pluggable cable is normally 2m long and other cable lengths are customizable; cable insulation materials are also customizable, including PVC, Teflon, Silicone and flexible ultra thin cable, etc.

Flexible ultra thin cable is suitable for refrigerator door and other application environment with high sealing requirements. Besides, users can also choose sharp or blunt sensor head as required.

Specification

Model

COEUS-WiFi

COEUS-4G

Data Upload Network

WiFi

4G

Device Configuration Network

Device AP

4G

Built-in Sensor

-20℃ ~+ 60℃

±0.5℃ F.S.

5% ~ 95% (Without condensation)

±3%RH (25℃, 20%~90%RH)

±5%RH (Other)

External Probes

See the External Probe List

Logging Interval

1min~3,000min

Uploading Interval

1min~3,000min

Memory Capacity

120,000 readings, circular buffer

Power

Rechargeable lithium battery
USB-Type C, 5V/2A (DC)

Charging Time

About 4 hours

Display

LCD

Alarm Mode

Audible and visual alarm

Battery Life

Max. 90 days (uploading interval: one hour)

Device Dimensions

109mm(L)*33mm(W)*80mm(H)

Screen Dimensions

85mm*52mm

Weight

145g



External Probe List:

Probe Type

Measuring Range

Measuring Accuracy

Temperature Probe

-30℃~+70℃

±0.5℃ (-30℃~+50℃)

±1.0℃(+50℃~+70℃)

-90℃~+200℃

±0.3℃ (-40℃~+100℃)

±0.5℃ (-80℃~-40℃; +100℃~+150℃)

±1.0℃ (Other)

Temperature and Humidity Probe

-40℃~+85℃

±0.5℃ F.S.

0-100%RH

±3%RH (25℃, 20%~90%RH)

±5%RH (Other)

Standard cable length: 2m;   Customizable length available: 5m, 10m, 15m or 20m.

Applications

COEUS series WiFi/4G Real-time data loggers are mainly used for the temperature and humidity monitoring of cold rooms, especially the fridges and freezers. They will automatically upload all monitoring data to the cloud via WiFi or 4G network accordingly. Besides, they have a large LCD screen to help users to intuitively view the current temperature and humidity, Max. and Min. temperature and humidity values, date and time, etc.
